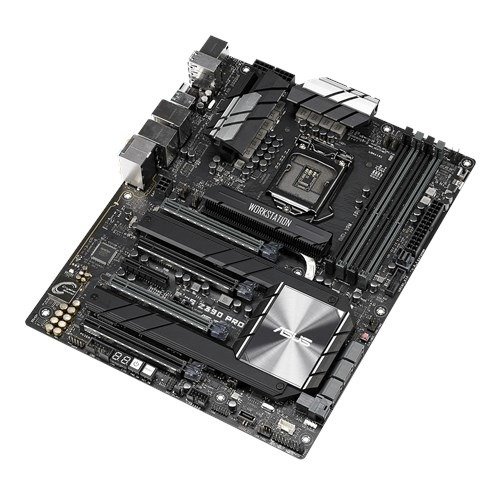

Form factorATX
ChipsetIntel Z390
R.A.M.4x DDR4 DIMM, dual PC4-34133U / DDR4-4266 (OC), max.128GB (UDIMM)
Expansion slots4x PCIe 3.0 x16 (2x x16, 2x x8, 1x x4), 1x PCIe 3.0 x4, 2x M.2 / M-Key (PCIe 3.0 x4 / SATA, 22110/2280/2260/2242), 2x U.2 (PCIe 3.0 x4)

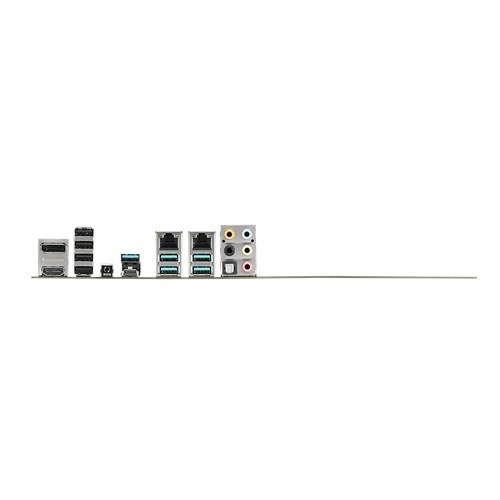

External connections1x HDMI 2.0 (iGPU), 1x DisplayPort 1.2 (iGPU), 1x USB-C 3.1 (ASM3142), 2x USB-A 3.1 (Z390), 3x USB-A 3.1 (ASM3142), 4x USB-A 2.0, 2x Gb LAN (Intel I219-LM / Intel I210-AT), 5x jack, 1x Toslink
Internal connections1x USB-C 3.0 (20-pin Key-A header), 1x USB 3.0 header (2x USB 3.0), 1x USB 2.0 header (2x USB 2.0), 6x SATA 6Gb / s (Z390), 1x serial, 1x TPM- Header, 1x Thunderbolt header 5-pin
Header cooling2x CPU fan 4-pin, 4x fan 4-pin, 1x pump 4-pin, 1x fan 5-pin
Header lighting1x 4-pin RGB (+ 12V / G / R / B, max. 2A)
Buttons / switchesPower button (internal), reset button (internal), MemOK switch (internal), Clear CMOS button (internal), USB BIOS Flashback (external)
Audio7.1 (Realtek ALC1220), DTS Connect, DTS Headphone: X
graphiciGPU
WirelessN / A
RAID level0/1/5/10 (Z390)
Multi-GPUNVIDIA 4-Way-SLI (x16 / x16, x16 / x8 / x8, x8 / x8 / x8 / x8), AMD 4-Way-CrossFireX (x16 / x16, x16 / x8 / x8, x8 / x8 / x8 / x8)
Power connections1x 24-pin ATX, 2x 8-pin EPS12V, 1x 6-pin PCIe
lightingN / A
particularitiesAudio + solid capacitors, diagnostic LED (segment display), 2x M.2 passive cooler, PLX PEX 8747 switch
Manufacturer guaranteethree years (processing via dealer)
USB notationlink
Last price update
Listed since09.10.2018, 10:29
